Reference Table NFPA 11

Foam Application Rates for Fixed Roof Tanks

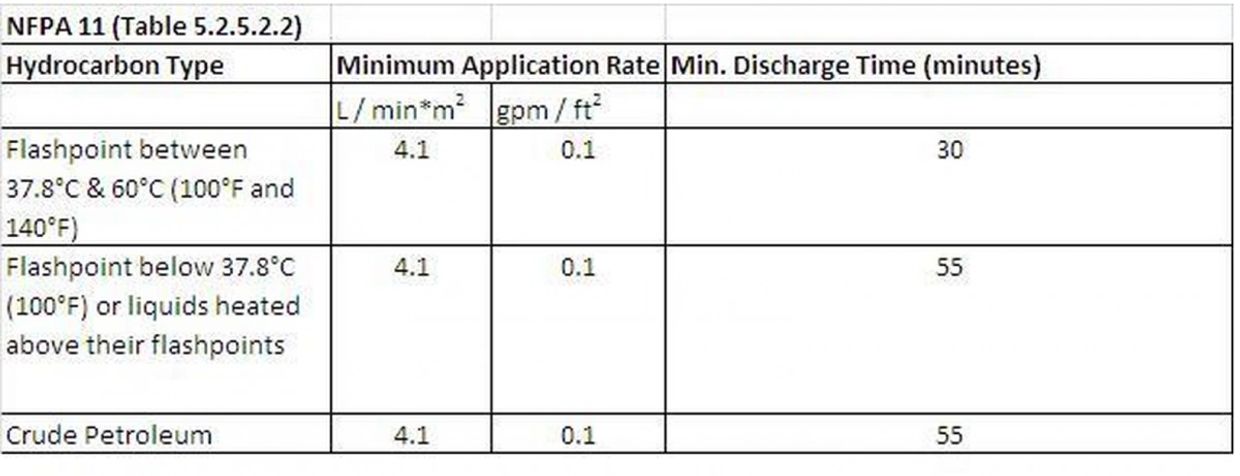

Table A. Foam Application Rates for Fixed Roof Tanks.

Table 5.2.5.2.2 of NFPA 11

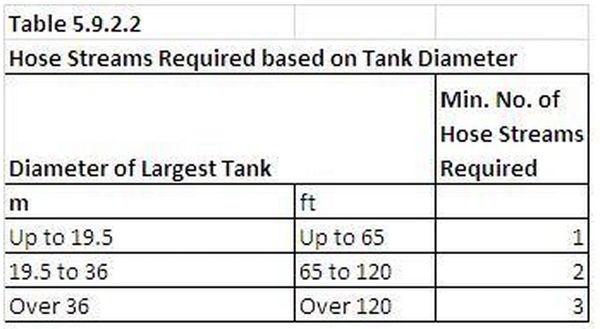

Table B: Supplemently Hose Selection Table

Table 5.9.2.2 from NFPA 11

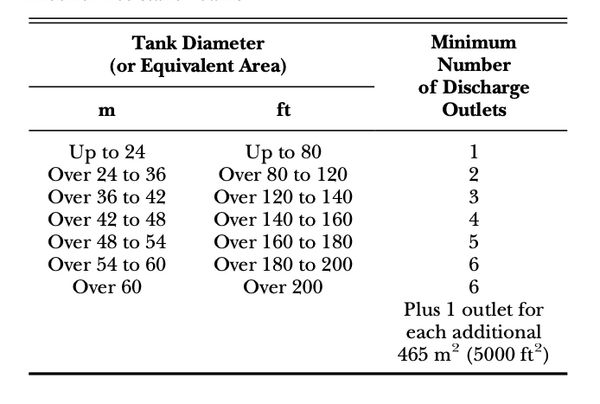

Table C: Quantity of Fixed Foam Discharge Outlets

Table 5.2.5.2.1 from NFPA 11

ONLY FOR FIXED ROOF TANKS

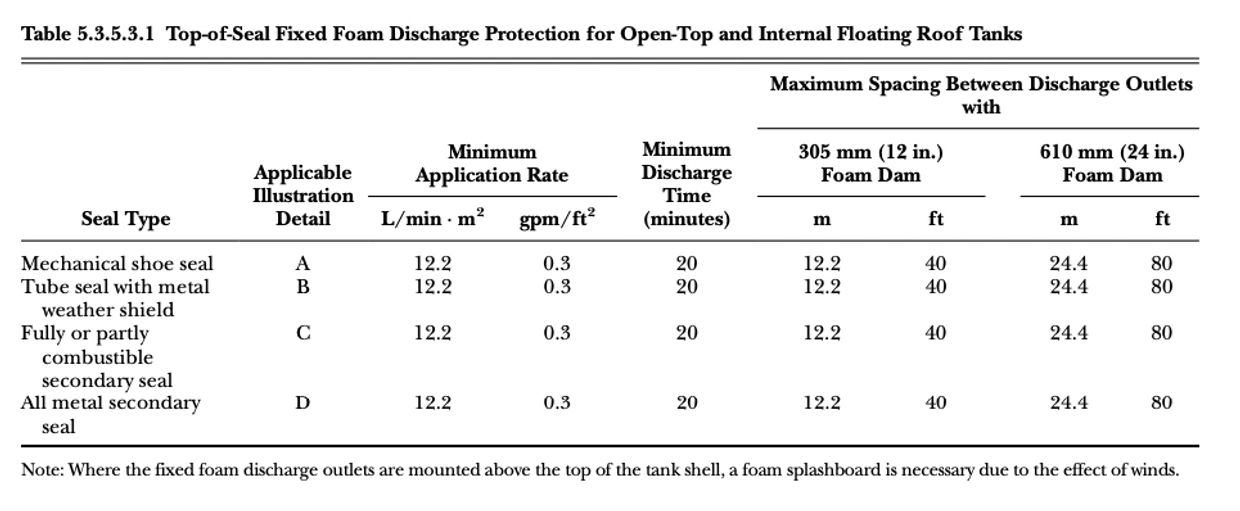

Table D. Foam Application Rates for Open Top & Internal Floating Roof Tanks.

Table 5.3.5.3.1 of NFPA 11

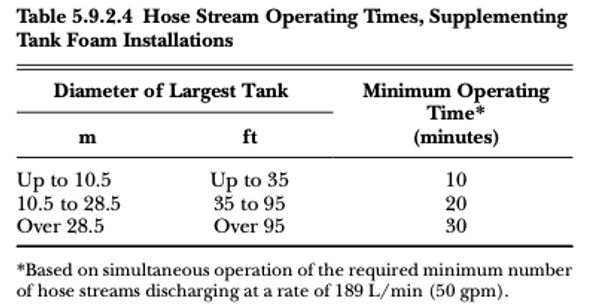

Table E : Supplementally Hose Operating Time

Table 5.9.2.4 from NFPA 11

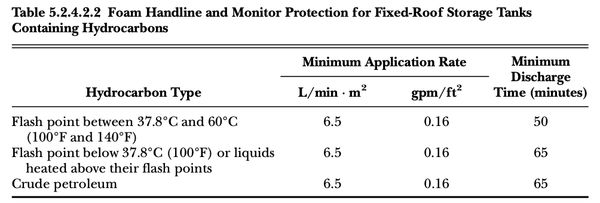

Table F: Foam Handlines and Monitors; Application Rates

Table 5.2.4.2.2 from NFPA 11

NOTE: Before using this table, refer to clause 5.2.4.1.1 and 5.2.4.1.2
